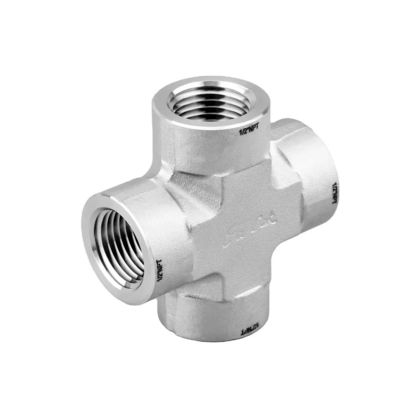

SS 316 thread forged pipe fitting cross

  • SS 316 thread forged pipe fitting cross
Nguồn gốc Trung Quốc / Nhật Bản / Đức
Hàng hiệu TOBO/TPCO/TISCO/VALIN/METAL
Chứng nhận ISO/PED/TUV/SGS/LR/BV
Số mô hình Ống liền mạch bằng thép không gỉ 1.4835
Số lượng đặt hàng tối thiểu 0,5-1 tấn
Giá bán Có thể đàm phán
chi tiết đóng gói trong túi nhựa sau đó trong gói
Thời gian giao hàng 15 ngày->
Điều khoản thanh toán T / T, L / C, Western Union, MoneyGram
Khả năng cung cấp 7500 tấn mỗi năm
Thông tin chi tiết sản phẩm
Tiêu chuẩn DIN, ANSI, ISO, GB, JIS Đăng kí Ống chất lỏng, ống kết cấu
Mặt Ủ & ngâm, ủ sáng, đánh bóng Các loại Liền mạch
Độ dày 0,5-100mm Đường kính ngoài 6-813mm
Vật chất Thép carbon, thép không gỉ, thép hợp kim, đồng thau, đồng Vật mẫu Cung cấp, Miễn phí, Có sẵn miễn phí trong vòng 7 ngày
Làm nổi bật

SS 316 đường ống rèn

,

Thép không gỉ dây chuyền đường ống

,

316 dây chuyền ống rèn với bảo hành
Để lại lời nhắn
Mô tả sản phẩm

SS 316 thread forged pipe fitting cross



Overview

Quick Details
Customized support:
OEM
Place of Origin:
China

Technics:
Forged
Connection:
Female
Shape:
Equal
Head Code:
Hexagon
Size:
1/16"~1"
Customization:
available
OEM service:
available
Warranty:
1 year
Certificate:
ISO 9001, CE







Supply Ability
Supply Ability
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Each one in poly bag and small box, then in export wooden case
Port
Ningbo or Shanghai




Product Description
Name
Pipe fitting- female cross
Connection
Thread (NPT, BSPP, BSPT, UN, G, R)
Material
Stainless Steel
Features:
1.Sizes: 1/16" to 1 1/4"
2.Pressure: up to 2600-9200 psi
3.Material: stainless steel 316,304
4.Thread standard: NPT, BSP, G, AN, RP ,ISO and etc
5.The hardened threads with smooth surface finishing avoid galling and help to extend the fitting service life
6.Every fitting is stamped with size,material and heat code.
Products Show
SS 316 thread forged pipe fitting cross 0
SS 316 thread forged pipe fitting cross 1
SS 316 thread forged pipe fitting cross 2
SS 316 thread forged pipe fitting cross 3
Main Products

Tube fitting

Our tube fittings stainless steel, compression tube fitting and stainless steel tubing fittings, stainless steel tube fittings, are designed availablely in many connections and configurations. Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads

SS 316 thread forged pipe fitting cross 4

Needle valve & Ball valve

FD-LOK needle valves has 10 different types,needle valve have several tips can be choosed, such as Blunt Tip, Regulating Tip, Soft Tip and Non-rotating Tip.
Three way ball valves widely used in many solution systems. We also provide them in parts. We provide stainless steel ball valves not only in 316, but also special materials such as inconel, monel, hastelloy, incolloy, duplex and super duplex.

Block &Bleed valve

FD-LOK Double block and bleed valves is including DBB valve series, Single block and bleed valves and bleed valves series, DB series, SB series. Different materials can be choosed, such as Stainless steel, Duplex, Inconel, Monel.

SS 316 thread forged pipe fitting cross 5





FAQ



Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
